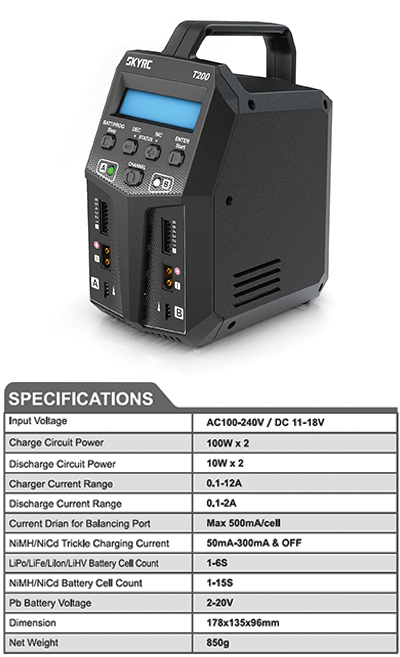

Specifications

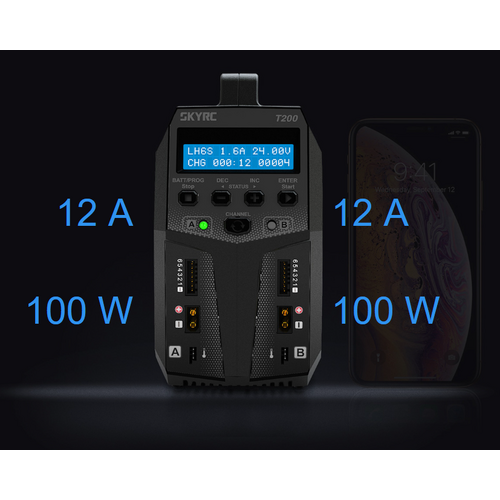

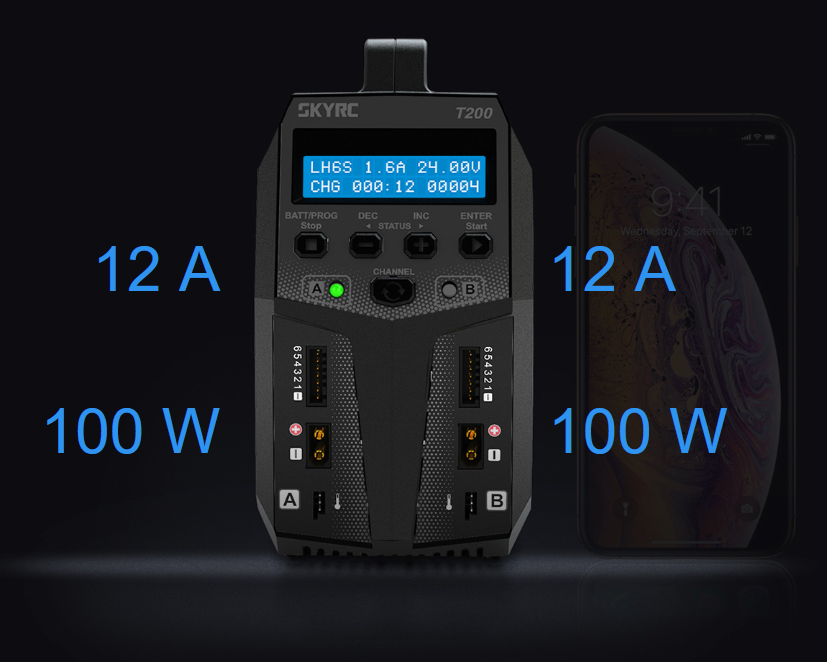

T200

T200 comes ready to charge in the most compact design yet while taking up minimal space in the pit area.

Size and Weight

Case Material: Plastic
Case Size: 178x135x96mm
Weight: 850g

Display

Display Type: LCD

Display Backlight: Blue

Power

DC Input Voltage: 11-18V
AC Input Voltage : 100-240V
Charge Wattage: 100W X 2
Discharge Wattage: 10W

Battery

Battery Types/Cells:
LiPo/LiHV/LiFe/LiIon: 1-6cells
NiMH/NiCd: 1-15cells
Pb: 2-20V

Battery Capacity Range:
NiMH/NiCd:100-50000mAh
LiPo/LiIon/LiFe/LiHV:100-50000mAh
Pb: 100-50000mAh

Charge and Discharge

Charge Voltage

NiMH/NiCd: Delta peak detection

LiPo: 4.18-4.25V/cell
LiFe: 3.58-3.7V/cell
Pb: 1.8-2.0V/cell

LiIon: 4.08-4.2V/cell
LiHV: 4.25-4.35V/cell



Discharge Cut-off Voltage

NiMH/NiCd:0.1-1.1V/cell

LiPo:3.0-3.3V/cell
LiFe:2.6-2.9V/cell

LiIon: 2.9-3.2V/cell
LiHV: 3.1-3.4V/cell



Battery Cutoff Temperature: 20ºC/68ºF-80ºC/176ºF(adjustable)

Reading Voltage Range: 0.1-26.1V/cell

Charge Current: 0.1A-12.0A

Discharge Current: 0.1A-2.0A
Balance Cells: 2-6 cells
Balance Current: 500mA/cell
Safety Timer: 1-120minutes off

Charge Method:

CC/CV for lithium types and lead(Pb) batteries Delta-peak Sensitivity for NiMH/NiCd.

Memory: 10 different charge/discharge profiles



These chargers donot come with any charge or balance boards, we recommend TRC-5006C or TRC-5010A multi-leads and TRC-1708-XH balance boards.

(SK-100155)

SKU 6930460005960
Barcode # 6930460005960
Brand SkyRC
